Floors block signal
Signals passing vertically through ceilings, floorboards, joists and insulation often lose more strength than signals crossing open rooms.
Upstairs Wi‑Fi fixes
Improve bedrooms, offices and loft rooms
Find out why upstairs rooms often have weaker Wi‑Fi and how to improve bedrooms, offices and loft rooms without wasting money on the wrong upgrade.
Fast diagnosis
Match the upstairs symptom, landing test and fix
Use one table first. The issue, proof test and fix are combined here so the page does not repeat separate Issue, Validate and Fix sections.
| What you see | Likely bottleneck | Proof test | Matched fix |
|---|---|---|---|
| Ground floor is fast, but the upstairs landing is weak | Vertical floor attenuation from joists, pipework, RSJ steel, underfloor heating or foil-backed insulation. | Compare a router-side test with a landing test at the top of the stairs. | Raise or centralise the router, use Ethernet backhaul, Powerline, or place the first mesh node where the stairwell signal is still clean. |
| Landing is usable, but one bedroom or office drops sharply | Room-level obstruction from doors, wardrobes, internal walls, furniture, mirrors or device placement. | Test on the landing, then repeat inside the weak room with the door closed. | Move the relay or access point closer to the room entrance, reposition the device, or use a wired access point for that room. |

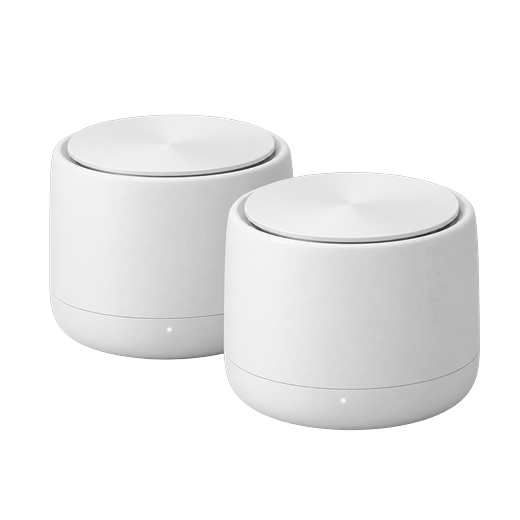

| Several upstairs rooms or a loft conversion are weak | Whole-floor coverage gap or poor wireless backhaul to upstairs nodes. | Test landing, bedroom and loft-room locations with the same device and server. | Use mesh with a clean landing node, Ethernet backhaul, or an upstairs access point rather than a single plug-in booster. |

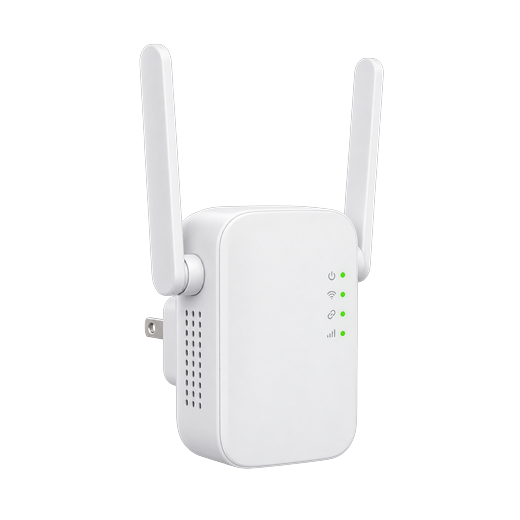

| Extender shows bars but upstairs still feels slow | The extender is repeating a weak downstairs backhaul signal. | Move the extender between the router and landing, then compare landing and bedroom speeds. | Keep the extender near the stairwell path where it still receives strong signal, not inside the weakest room. |
| Everywhere is slow, including beside the router | This is no longer an upstairs-only Wi‑Fi coverage fault. | Run a wired baseline beside the router before changing upstairs hardware. | Open our comprehensive guide to improving whole-home Wi‑Fi speed, or use the wired Ethernet line-rate baseline workflow to trace incoming faults. |
Interactive check
Is upstairs Wi‑Fi blocked by the floor or by one room?
Enter the ground-floor, landing and weak-room results. The calculator separates vertical floor loss from a bedroom-only obstruction.
Reference while testing
Vertical signal path, landing placement and dBm checks
Use these supporting checks only when the matrix points to floors, stairwell path loss, bedroom obstruction or relay backhaul.
Router location
A router by the master socket or full-fibre ONT may be convenient for cabling but poor for upstairs coverage if it sits in a downstairs corner.
Band choice
5GHz and 6GHz are faster nearby but often fade more through floors than 2.4GHz, especially when foil insulation or pipework sits between rooms.
Upstairs landing-first Wi‑Fi blueprint
The landing test proves whether the open stairwell carries usable signal upstairs before bedroom doors, wardrobes, pipework and internal walls weaken it again.
The staircase funnel effect
Open stairwells often become the natural path of least resistance for upstairs Wi‑Fi. Radio waves can reflect off hallway walls and travel up the stairwell more cleanly than they can punch straight through a reinforced ceiling or foil-backed floor layer.
When floor blockages need a non-wireless route
When underfloor heating manifolds, structural RSJ steel, dense foil insulation or heavy pipework block radio waves, route the data another way.
- Ethernet backhaul: best for an upstairs office, games console, desktop PC or access point where reliability matters.
- Powerline: can bypass the floor by using electrical wiring, but results depend on circuit quality and layout.
Wi‑Fi signal strength cheat sheet for upstairs rooms
Use a Wi‑Fi analyser on Android or a laptop Wi‑Fi utility to compare the signal beside the router, on the upstairs hallway and inside the weak room. Lower negative dBm numbers mean a stronger signal.
| Signal Strength (dBm) | Real-World Status | Best Corrective Action |
|---|---|---|
| -30 to -50 dBm | Excellent | No coverage fix needed; check congestion, device limits or the wired baseline if speeds still look wrong. |
| -60 to -67 dBm | Good | Usually strong enough for streaming, calls and gaming if jitter and packet loss are low. |
| -70 to -80 dBm | Weak Connection | Expect buffering or unstable calls upstairs; improve router placement, mesh backhaul, or access point location. |
| -90 dBm or worse | Dead zone | Wi‑Fi is close to unusable; use mesh, Ethernet backhaul, Powerline or a wired access point instead. |
Proof checks
Run the landing-first proof checks
These steps validate the row you chose above. They replace separate issue, fix and validation sections.
- 1Run a ground-floor baseline test.
Stand beside the main router, pause heavy downloads and run LinkSpeed to capture the strongest local Wi‑Fi result.
- 2Test the staircase landing hallway.
Move upstairs to the landing and test again. This checks whether the open stairwell path is carrying usable signal between floors.
- 3Measure the bedroom or office drop.
Step into the weak room, close the door and retest. A large drop from the landing result points to room-level barriers rather than the whole upstairs floor.
Test before changing gear
Compare downstairs, landing and bedroom results
Run LinkSpeed beside the router, then upstairs on the landing, then in the weakest room. The pattern tells you whether the fix is placement, mesh, Ethernet, Powerline or a local room obstruction.
Focused answers
Wi‑Fi slow upstairs FAQs
Use these after the landing-first test separates whole-floor loss from one-room obstruction.
Why is Wi‑Fi slower upstairs than downstairs?
Wireless signals struggle with vertical travel because floors, joists, pipework, underfloor heating and foil-backed insulation can absorb or reflect Wi‑Fi before it reaches bedrooms or loft rooms.
Where is the best place to put a Wi‑Fi booster for upstairs?
Start on the upstairs landing or hallway where the booster can still receive a clean stairwell signal from downstairs. Do not put the booster inside the weakest bedroom first.
Will a new broadband package fix slow upstairs internet?
No, not if the ground-floor router test is already fast. A sharp upstairs drop is usually caused by indoor Wi‑Fi propagation, floor materials, router placement or relay backhaul.
Can Powerline adapters help when upstairs Wi‑Fi will not pass through floors?
Yes. Powerline can bypass floor insulation or steel by sending data through electrical wiring, although performance depends on the quality and layout of the circuit.
What dBm signal strength is too weak upstairs?
Around -70 dBm to -80 dBm is usually weak enough to cause buffering or unstable calls upstairs. Around -90 dBm is close to a dead zone and normally needs mesh, Ethernet backhaul, Powerline or a wired access point.
